Log 50 Track Mid Output

Log 50 Track Mid Output
Log 50 Track Mid Output

Technische Fiche

MERK – MARQUE: MOLTO LUCE
MATERIAAL – MATERIAUX: ALUMINIUM
TYPE: RAIL 3 PHASE
AFMETINGEN ARMATUUR – DIMENSIONS ARMATURE: L = 846 MM / L = 1126MM / L = 1407 MM

L = 1687 MM /  L = 2248 MM

KLEUR – COULEUR: ZWART-NOIR / WIT-BLANC / SILVER
DIFFUSER – DIFFUSEUR OPAL / MICROPRISMATIC
UITRUSTING – EQUIPEMENT: LED
SYSTEEMVERMOGEN – PUISSANCE DE SYSTÈME: 10W / 14W / 17W / 20W / 28W
KELVIN GRADEN – DEGRÉ KELVIN: 2700ºK / 3000°K /  4000°K
LUMEN: 10W

OPAL

1250 LM (2700°K) / 1290 LM (3000°K) / 1290 LM (4000°K)

MICROPRISMATIC

1190 LM (2700°K) / 1220 LM (3000°K) / 1220 LM (4000°K)



14W

OPAL

1680 LM (2700°K) / 1720 LM (3000°K) / 1720 LM (4000°K)

MICROPRISMATIC

1600 LM (2700°K) / 1640 LM (3000°K) / 1640 LM (4000°K)



17W

OPAL

2100 LM (2700°K) / 2160 LM (3000°K) / 2160 LM (4000°K)

MICROPRISMATIC

2000 LM (2700°K) / 2050 LM (3000°K) / 2050 LM (4000°K)



20W

OPAL

2510 LM (2700°K) / 2570 LM (3000°K) / 2570 LM (4000°K)

MICROPRISMATIC

2390 LM (2700°K) / 2450 LM (3000°K) / 2450 LM (4000°K)



28W

OPAL

3360 LM (2700°K) / 3440 LM (3000°K) / 3440 LM (4000°K)

MICROPRISMATIC

3200 LM (2700°K) / 3280 LM (3000°K) / 3280 LM (4000°K)

RA – CRI: >80
AFKOELING – REFROIDISSEMENT: PASSIEF – PASSIF
VOORSCHAKELAPP – BALLAST: LED DRIVER
VOEDING – ALIMENTATION: 220-240V AC 50/60HZ
BESCHERMING – PROTECTION: IP20
NORM – NORME: CE EN60598-1
CIE FLUXCODE: OP AANVRAAG – SUR DEMANDE
OPTIE – OPTION DALI / ON-OFF

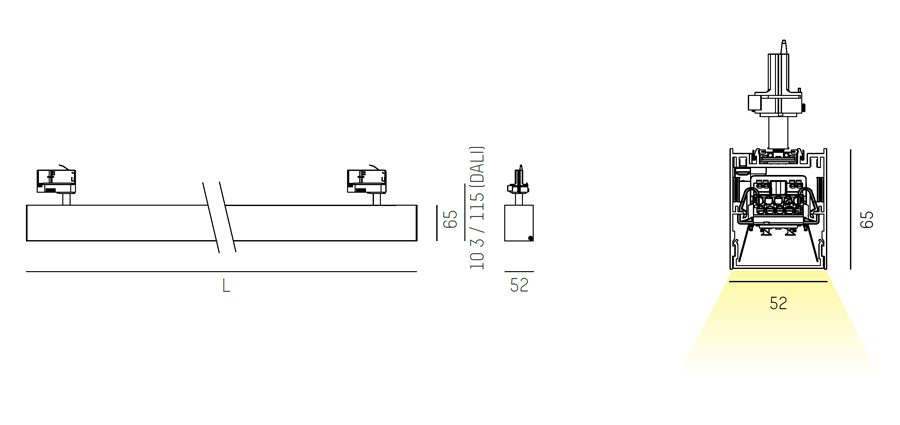

Technische tekening

Technische tekening
