| Merk – Marque: | Molto Luce – Trail |
| Materiaal – Materiaux: | Aluminium |
| Type: | Rail Insert |
| Afmetingen armatuur – Dimensions armature: | 64xLmm
L = 1137 mm / L = 1696 mm / L = 2255 mm |
| Kleur – Couleur: | Zwart-Noir / Wit-Blanc / Silver |
| Bundel – Faisceau: | Narrow Beam 30º / Medium Beam 60º / Wide Beam 90º
Asymmetric / Double asymmetric |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | 40W / 60W / 80W |
| Kelvin graden – Degré Kelvin: | 3000°K / 3500ºK / 4000°K / 6500ºK |
| Lumen: | 40W
Asymmetric 5940 lm (3000°K) / 5940 lm (3500°K) / 6260 lm (4000°K) / 6260 lm (6500°K) Double asymmetric 5940 lm (3000°K) / 5940 lm (3500°K) / 6260 lm (4000°K) / 6260 lm (6500°K) Wide Beam 6280 lm (3000°K) / 6280 lm (3500°K) / 6620 lm (4000°K) / 6620 lm (6500°K) Narrow Beam 6280 lm (3000°K) / 6280 lm (3500°K) / 6620 lm (4000°K) / 6620 lm (6500°K) Medium Beam 6480 lm (3000°K) / 6480 lm (3500°K) / 6830 lm (4000°K) / 6830 lm (6500°K)
60W Asymmetric 8910 lm (3000°K) / 8910 lm (3500°K) / 9390 lm (4000°K) / 9390 lm (6500°K) Double asymmetric 8910 lm (3000°K) / 8910 lm (3500°K) / 9390 lm (4000°K) / 9390 lm (6500°K) Wide Beam 9420 lm (3000°K) / 9420 lm (3500°K) / 9930 lm (4000°K) / 9930 lm (6500°K) Narrow Beam 9420 lm (3000°K) / 9420 lm (3500°K) / 9930 lm (4000°K) / 9930 lm (6500°K) Medium Beam 9720 lm (3000°K) / 9720 lm (3500°K) / 10250 lm (4000°K) / 10250 lm (6500°K)
80W Asymmetric 11880 lm (3000°K) / 11880 lm (3500°K) / 12520 lm (4000°K) / 12520 lm (6500°K) Double asymmetric 11880 lm (3000°K) / 11880 lm (3500°K) / 12520 lm (4000°K) / 12520 lm (6500°K) Wide Beam 12560 lm (3000°K) / 12560 lm (3500°K) / 13240 lm (4000°K) / 13240 lm (6500°K) Narrow Beam 12560 lm (3000°K) / 12560 lm (3500°K) / 13240 lm (4000°K) / 13240 lm (6500°K) Medium Beam 12960 lm (3000°K) / 12960 lm (3500°K) / 13660 lm (4000°K) / 13660 lm (6500°K) |
| RA – CRI: | >80 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Voeding – Alimentation: | 220-240V AC 50/60Hz |
| Bescherming – Protection: | IP20 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Optie – Option | DALI / On-Off |
Mid Output Light Insert
Technische Fiche

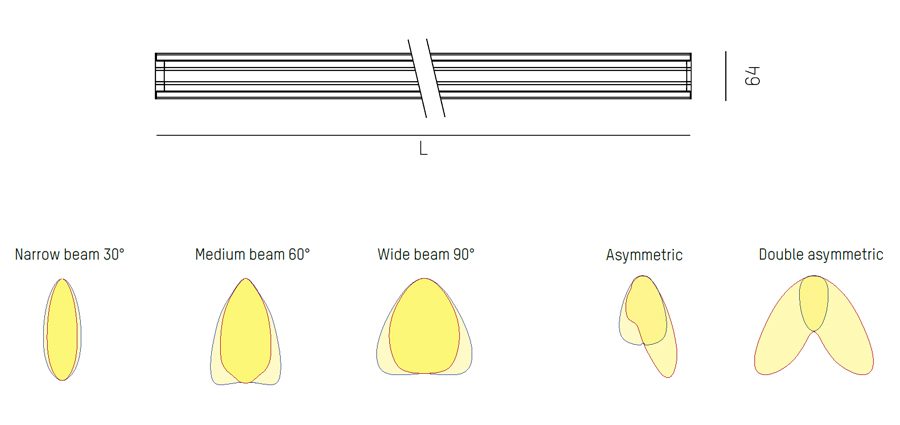

Technische tekening
