| Merk – Marque: | Exenia |
| Materiaal – Materiaux: | Die Cast Aluminium |
| Type: | Opbouw / Apparent
Richtbaar-Orientable: 350° Horizontal-Horizontaal / 100° Vertical-Verticaal |
| Afmetingen armatuur – Dimensions armature: | Ø60x140mm |
| Kleur – Couleur: | Wit-Blanc / Zwart-Noir / Concrete Grey
Ring finish: Lacquered red / Matt orange / Spring green Corn yellow / Matt white / Matt black Concrete grey |
| Bundel – Faisceau: | 21º / 28º / 38º |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | 9W / 13W |
| Kelvin graden – Degré Kelvin: | 2700°K / 3000°K / 4000°K |
| Lumen | 9W
CRI > 85 & 3000ºK – Nominal = 1271 lm Deliv. Output: 1123 lm (21º) / 1125 lm (28º) / 1128 lm (38º) CRI > 95 & 2700ºK – Nominal = 979 lm Deliv. Output: 865 lm (21º) / 866 lm (28º) / 869 lm (38º) CRI > 95 & 3000ºK – Nominal = 1030 lm Deliv. Output: 910 lm (21º) / 912 lm (28º) / 914 lm 38º) CRI > 95 & 4000ºK – Nominal = 1115 lm Deliv. Output: 985 lm (21º) / 987 lm (28º) / 990 lm (38º)
13W CRI > 85 & 3000ºK – Nominal = 1736 lm Deliv. Output: 1534 lm (21º) / 1536 lm (28º) / 1541 lm (38º) CRI > 95 & 2700ºK – Nominal = 1337 lm Deliv. Output: 1181 lm (21º) / 1183 lm (28º) / 1187 lm (38º) CRI > 95 & 3000ºK – Nominal = 1407 lm Deliv. Output: 1243 lm (21º) / 1245 lm (28º) / 1249 lm (38º) CRI > 95 & 4000ºK – Nominal = 1523 lm Deliv. Output: 1346 lm (21º) / 1349 lm (28º) / 1353 lm (38º) |
| CRI | >85 / >95 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Bescherming – Protection: | IP20 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Optie – Option | On-Off
Color Rings / Cut-Off / Visor / Honeycom louvre / Satin diffuser Ceiling adaptor / Recessed adaptor |
M2 Standard
Technische Fiche

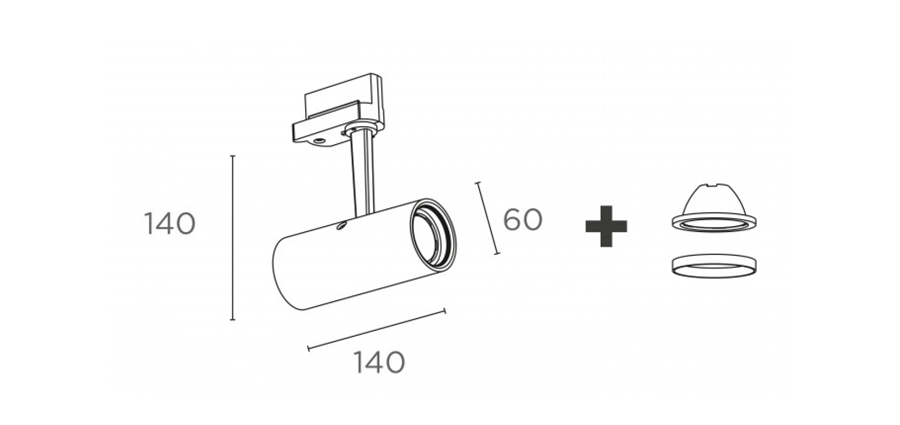

Technische tekening
