M4

M4
M4

Technische Fiche

Merk – Marque: Exenia
Materiaal – Materiaux: Die Cast Aluminium
Type: Opbouw / Apparent

Richtbaar-Orientable: 350° Horizontal-Horizontaal / 100° Vertical-Verticaal

Afmetingen armatuur – Dimensions armature: Ø105x200mm
Kleur – Couleur: Wit-Blanc / Zwart-Noir / Concrete Grey



Ring finish:

Lacquered red / Matt orange / Spring green

Corn yellow / Matt white / Matt black

Concrete grey

 26° / 40° / 55°
Uitrusting – Equipement: LED
Systeemvermogen – Puissance de système: 26W /40W
Bundel – Faisceau: 26W: 15º / 30º / 58º / Shaper

40W: 26º / 38º / 56º / Shaper

Kelvin graden – Degré Kelvin: 2700°K / 3000°K / 4000°K
Lumen 26W

CRI > 85 & 3000ºK – Nominal = 3804 lm

Deliv. Output: 2675 lm (15º) / 2634 lm (30º) / 2628 lm (58º)

CRI > 95 & 2700ºK – Nominal = 3157 lm

Deliv. Output: 2220 lm (15º) / 2186 lm (30º) / 2181 lm (58º)

CRI > 95 & 3000ºK – Nominal = 3281 lm

Deliv. Output: 2307 lm (15º) / 2272 lm (30º) / 2267 lm (58º)

CRI > 95 & 4000ºK – Nominal = 3333 lm

Deliv. Output: 2344 lm (15º) / 2308 lm (30º) / 2303 lm (58º)



40W

CRI > 85 & 3000ºK – Nominal = 5822 lm

Deliv. Output: 3993 lm (20º) / 3980 lm (28º) / 3955 lm (60º)

CRI > 95 & 2700ºK – Nominal = 4797 lm

Deliv. Output: 3290 lm (20º) / 3279 lm (28º) / 3259 lm (60º)

CRI > 95 & 3000ºK – Nominal = 4989 lm

Deliv. Output: 3422 lm (20º) / 3410 lm (28º) / 3389 lm (60º)

CRI > 95 & 4000ºK – Nominal = 5066 lm

Deliv. Output: 3474 lm (20º) / 3463 lm (28º) / 3442 lm (60º)

CRI >85  & 3000ºK / >95
Afkoeling – Refroidissement: Passief – Passif
Voorschakelapp – Ballast: LED driver
Bescherming – Protection: IP20
Norm – Norme: CE EN60598-1
CIE fluxcode: Op aanvraag – Sur demande
Optie – Option On-Off / DALI / 1-10V



Color Rings / Cut-Off / Visor / Honeycom louvre / Satin diffuser / Zoom

Ceiling adaptor / Recessed adaptor

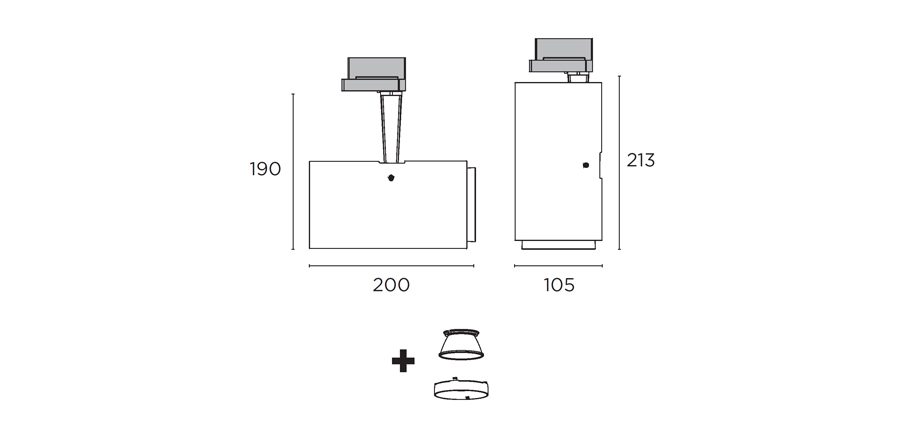

Technische tekening

M4

M4 M4

Technische Fiche

Merk – Marque: Exenia
Materiaal – Materiaux: Die Cast Aluminium
Type: Opbouw / Apparent

Richtbaar-Orientable: 350° Horizontal-Horizontaal / 100° Vertical-Verticaal

Afmetingen armatuur – Dimensions armature: Ø105x200mm
Kleur – Couleur: Wit-Blanc / Zwart-Noir / Concrete Grey



Ring finish:

Lacquered red / Matt orange / Spring green

Corn yellow / Matt white / Matt black

Concrete grey

 26° / 40° / 55°
Uitrusting – Equipement: LED
Systeemvermogen – Puissance de système: 26W /40W
Bundel – Faisceau: 26W: 15º / 30º / 58º / Shaper

40W: 26º / 38º / 56º / Shaper

Kelvin graden – Degré Kelvin: 2700°K / 3000°K / 4000°K
Lumen 26W

CRI > 85 & 3000ºK – Nominal = 3804 lm

Deliv. Output: 2675 lm (15º) / 2634 lm (30º) / 2628 lm (58º)

CRI > 95 & 2700ºK – Nominal = 3157 lm

Deliv. Output: 2220 lm (15º) / 2186 lm (30º) / 2181 lm (58º)

CRI > 95 & 3000ºK – Nominal = 3281 lm

Deliv. Output: 2307 lm (15º) / 2272 lm (30º) / 2267 lm (58º)

CRI > 95 & 4000ºK – Nominal = 3333 lm

Deliv. Output: 2344 lm (15º) / 2308 lm (30º) / 2303 lm (58º)



40W

CRI > 85 & 3000ºK – Nominal = 5822 lm

Deliv. Output: 3993 lm (20º) / 3980 lm (28º) / 3955 lm (60º)

CRI > 95 & 2700ºK – Nominal = 4797 lm

Deliv. Output: 3290 lm (20º) / 3279 lm (28º) / 3259 lm (60º)

CRI > 95 & 3000ºK – Nominal = 4989 lm

Deliv. Output: 3422 lm (20º) / 3410 lm (28º) / 3389 lm (60º)

CRI > 95 & 4000ºK – Nominal = 5066 lm

Deliv. Output: 3474 lm (20º) / 3463 lm (28º) / 3442 lm (60º)

CRI >85  & 3000ºK / >95
Afkoeling – Refroidissement: Passief – Passif
Voorschakelapp – Ballast: LED driver
Bescherming – Protection: IP20
Norm – Norme: CE EN60598-1
CIE fluxcode: Op aanvraag – Sur demande
Optie – Option On-Off / DALI / 1-10V



Color Rings / Cut-Off / Visor / Honeycom louvre / Satin diffuser / Zoom

Ceiling adaptor / Recessed adaptor

Technische tekening
