| Merk – Marque: | Climar Essence |
| Materiaal – Materiaux: | Body made of steel sheet with epoxy-polyester powder coating. |
| Type: | Opbouw / Apparent |
| Afmetingen armatuur – Dimensions armature: | 140x212x1262 mm |
| Kleur – Couleur: | White |
| Bundel – Faisceau: | Opal Polycarbonate / Clear Prismatic |
| Uitrusting – Equipement: | T8 LED Tubes / Led Modules |
| Systeemvermogen – Puissance de système: | Led Modules
13W / 26W
Led Tubes 1×10 MAX 1×22 MAX |
| Kelvin graden – Degré Kelvin: | 3000°K / 4000°K |
| Lumen: | Led Modules
3000°K 817 lm / 1332 lm 4000°K 860 lm / 1402 lm
Led Tubes 405 lm / 635 lm |
| RA-CRI: | >80 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Voeding – Alimentation: | 220/240V – 50/60Hz |
| Bescherming – Protection: | IP30 / IK05 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Optie – Option: | On-Off / DALI
Emergency |
ASH
Technische Fiche

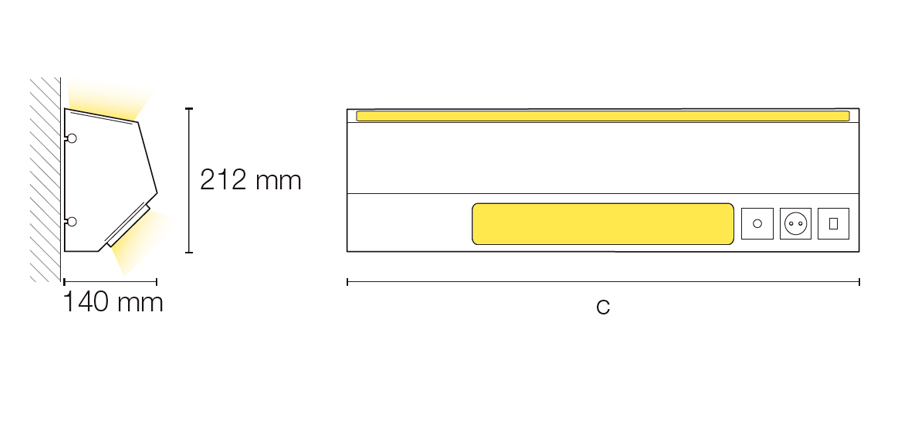

Technische tekening
