Technische Fiche

Merk – Marque:  Molto Luce
Materiaal – Materiaux: Aluminium
Type:

Opbouw / Apparent

Afmetingen armatuur – Dimensions armature:

60x144xL mm

Kleur – Couleur: Zwart-Noir / Wit-Blanc / Aluminium Anodized
Diffuser – Diffuseur Opaal – Opal  (pm) / Microprismatisch  – Microprismatique (mp)
Uitrusting – Equipement: LED
Systeemvermogen – Puissance de système:

2x21W (L=870mm) / 2x27W (L=1156mm) / 2x34W (L=1441mm) / 2x54W (L=2299mm) /

2x68W (L=2869mm) / 2x81W (L=3442mm) / 2x101W (L=4297mm) /

Kelvin graden – Degré Kelvin: 3000°K / 4000°K
Lumen:

2x21W:

3500lm (3000°K-mp), 3690lm (4000°K-mp)

3720lm (3000°K-pm), 3920lm (4000°K-pm)

2x27W:

4670lm (3000°K-mp), 4930lm (4000°K-mp)

4970lm (3000°K-pm); 5230lm (4000°K-pm)

2x34W:

5840lm (3000°K-mp), 6160lm (4000°K-mp)

6210lm (3000°K-pm), 6540lm (4000°K-pm)

2x54W:

9350lm (3000°K-mp), 9860lm (4000°K-mp)

9940lm (3000°K-pm); 10470lm (4000°K-pm)

2x68W:

11690lm (3000°K-mp), 12320lm (4000°K-mp)

12420lm (3000°K-pm); 13090lm (4000°K-pm)

2x81W:

14030lm (3000°K-mp), 14790lm (4000°K-mp)

14910lm (3000°K-pm), 15710lm (4000°K-pm)

2x101W:

17540lm (3000°K-mp), 18480lm (4000°K-mp)

18640lm (3000°K-pm); 19640lm (4000°K-pm)

RA – CRI: >80
Afkoeling – Refroidissement: Passief – Passif
Voorschakelapp – Ballast: LED driver
Voeding – Alimentation: 220-240V / 50-60Hz
Bescherming – Protection: IP20
Norm – Norme: CE EN60598-1
CIE fluxcode:

Op aanvraag – Sur demande

Optie – Option

DIM 1-10V / DALI / Push

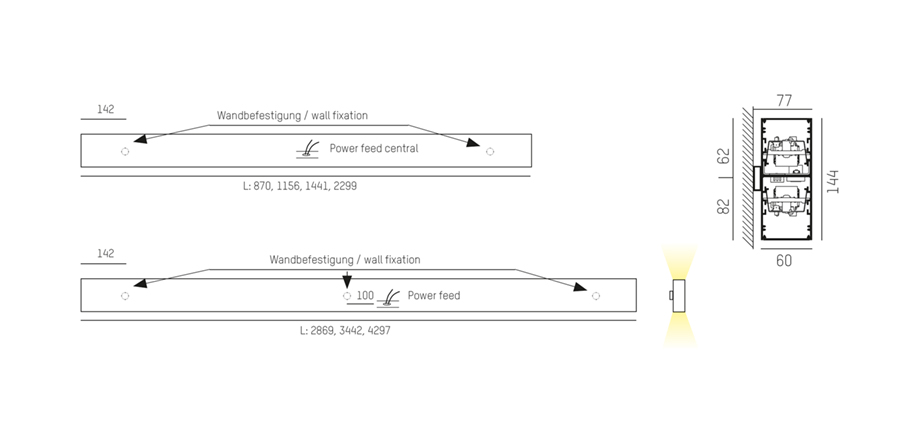

Technische tekening

Technische tekening
