| Merk – Marque: | Exenia |
| Materiaal – Materiaux: | Die Cast Aluminium |
| Type: | Opbouw-Apparent |
| Afmetingen armatuur – Dimensions armature: | 35x60x320mm |
| Kleur – Couleur: | Wit-Blanc / Zwart-Noir / Concrete Grey
Ring: Lacquered red / Matt orange / Green spring Yellow corn / Matt white / Matt black Concrete grey |
| Bundel – Faisceau: | Spot: 29°
Medium: 47° Large: 53° |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | 4x13W |
| Kelvin graden – Degré Kelvin: | 2700°K / 3000°K / 4000°K |
| Lumen: | Spot:
4×1202 lm Medium: 4×1205 lm Large: 4×1208 lm |
| RA-CRI: | >85 / >95 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Voeding – Alimentation: | 220/240V – 50/60Hz |
| Bescherming – Protection: | IP20 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Optie – Option | On-Off / 1-10V / DALI / Push
Visor / Snoot / Honeycomb / Satin Diffuser |
Pluriel Plus Bar 4x
Technische Fiche

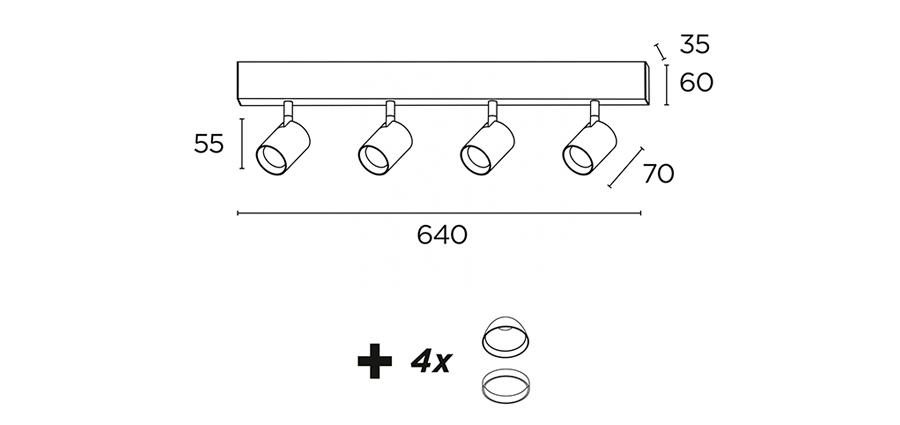

Technische tekening
