Snap Wall Direct & Indirect Light

Snap Wall Direct & Indirect Light
Snap Wall Direct & Indirect Light

Technische Fiche

Merk – Marque: Climar
Materiaal – Materiaux: Extruded Aluminium
Type: Opbouw / Apparent
Afmetingen armatuur – Dimensions armature: 33x79xCmm

C = 852mm

C = 1132mm

C = 1412mm

Kleur – Couleur: Matt White / Matt Anodized
Diffuser – Diffuseur Opal PMMA
Uitrusting – Equipement: LED
Systeemvermogen – Puissance de système: C = 852mm – 23W

C = 1132mm – 34W

C = 1412mm – 46W

Kelvin graden – Degré Kelvin: 3000°K / 4000°K
Lumen: Direct & Indirect Light

70% Direct and 30% Indirect Light Distribution



23W

1784 lm (3000°K) / 1866 lm (4000°K)

34W

2676 lm (3000°K) / 2799 lm (4000°K)

46W

3569 lm (3000°K) / 3733lm (4000°K)

RA – CRI: >80
Afkoeling – Refroidissement: Passief – Passif
Voorschakelapp – Ballast: LED driver
Voeding – Alimentation: 230V/50Hz
Bescherming – Protection: IP40 / IK04
Norm – Norme: CE EN60598-1
CIE fluxcode: Op aanvraag – Sur demande
Optie – Option DALI / On-Off / DSI / DIM 1-10V / Phase-cut



Turnable White / RGB / RGBW



Emergency: 1 Hour / 3 Hours / DALI 1 Hour / 3 Hours



Sensor: Motion sensor / Ambient Light / Motion & Ambient Light



CRI>90



Bluetooth Control System



2700K / 5000ºK / 6500ºK

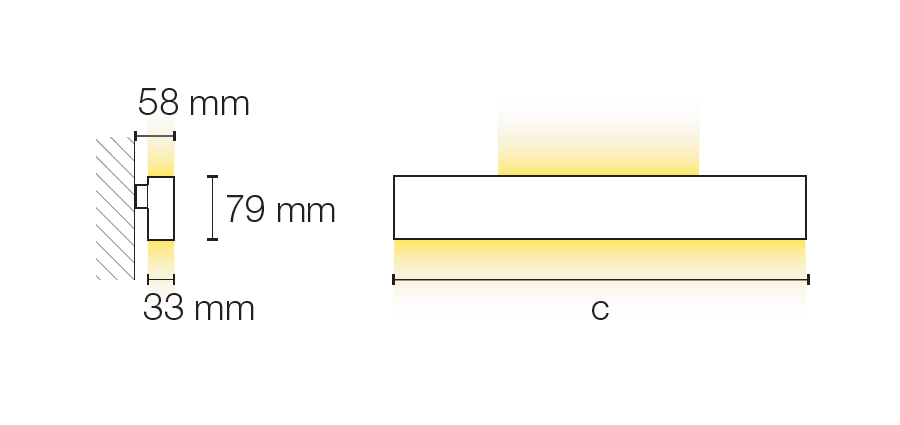

Technische tekening

Technische tekening

Snap Wall Direct & Indirect Light

Snap Wall Direct & Indirect Light Snap Wall Direct & Indirect Light

Technische Fiche

Merk – Marque: Climar
Materiaal – Materiaux: Extruded Aluminium
Type: Opbouw / Apparent
Afmetingen armatuur – Dimensions armature: 33x79xCmm

C = 852mm

C = 1132mm

C = 1412mm

Kleur – Couleur: Matt White / Matt Anodized
Diffuser – Diffuseur Opal PMMA
Uitrusting – Equipement: LED
Systeemvermogen – Puissance de système: C = 852mm – 23W

C = 1132mm – 34W

C = 1412mm – 46W

Kelvin graden – Degré Kelvin: 3000°K / 4000°K
Lumen: Direct & Indirect Light

70% Direct and 30% Indirect Light Distribution



23W

1784 lm (3000°K) / 1866 lm (4000°K)

34W

2676 lm (3000°K) / 2799 lm (4000°K)

46W

3569 lm (3000°K) / 3733lm (4000°K)

RA – CRI: >80
Afkoeling – Refroidissement: Passief – Passif
Voorschakelapp – Ballast: LED driver
Voeding – Alimentation: 230V/50Hz
Bescherming – Protection: IP40 / IK04
Norm – Norme: CE EN60598-1
CIE fluxcode: Op aanvraag – Sur demande
Optie – Option DALI / On-Off / DSI / DIM 1-10V / Phase-cut



Turnable White / RGB / RGBW



Emergency: 1 Hour / 3 Hours / DALI 1 Hour / 3 Hours



Sensor: Motion sensor / Ambient Light / Motion & Ambient Light



CRI>90



Bluetooth Control System



2700K / 5000ºK / 6500ºK

Technische tekening

Technische tekening
