| Merk – Marque: | Climar |
| Materiaal – Materiaux: | Extruded Aluminium |
| Type: | Opbouw / Apparent |
| Afmetingen armatuur – Dimensions armature: | 56x37xCmm
C = 568mm / C = 849mm C = 1130mm / C = 1411mm |
| Kleur – Couleur: | Matt White / Matt Anodized |
| Diffuser – Diffuseur | Opal |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | C = 568mm – 12W / 24W
C = 849mm – 18W / 35W C = 1130mm – 24W / 47W C = 1411mm – 30W / 59W |
| Kelvin graden – Degré Kelvin: | 3000°K / 4000°K |
| Lumen: | DIRECT OR INDIRECT LIGHT
3000°K 1241 lm / 2480 lm 4000°K 1298 lm / 2595 lm
3000°K 1860 lm / 3720 lm 4000°K 1947 lm / 3893 lm
3000°K 2480 lm / 4961 lm 4000°K 2595 lm / 5190 lm
3000°K 7785 lm / 3893 lm 4000°K 7441 lm / 3720 lm |
| RA – CRI: | >90 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Voeding – Alimentation: | 230V/50Hz |
| Bescherming – Protection: | IP40 / IK05 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Optie – Option | DALI / On-Off
Turnable White / RGB / RGBW
Emergency: 1 Hour / 3 Hours / DALI 1 Hour / 3 Hours
Sensor: Motion sensor / Ambient Light / Motion & Ambient Light
CRI>90
Bluetooth Control System
2700K / 5000ºK / 6500ºK |
Weline Wall
Technische Fiche

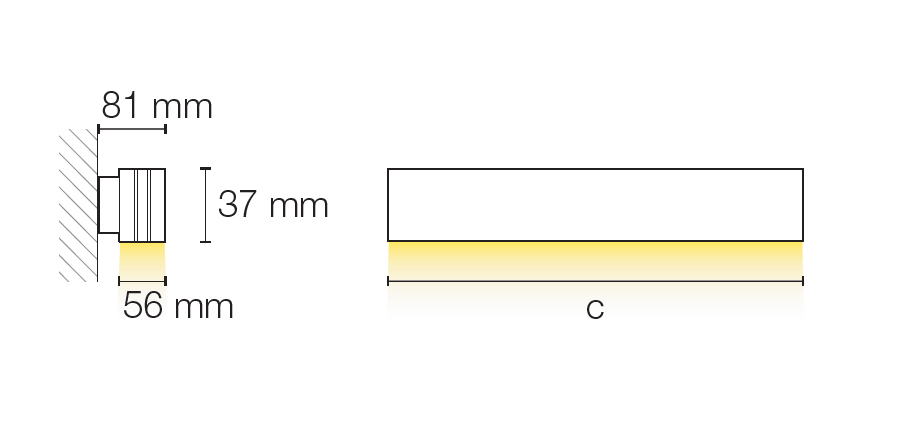

Technische tekening
