CACTUS Pole system + Wolf LED

CACTUS Pole system + Wolf LED
CACTUS Pole system + Wolf LED

Technische Fiche

Merk – Marque: Exenia
Materiaal – Materiaux: Die-cast Aluminium
Type: Opbouw / Apparent
Afmetingen armatuur – Dimensions armature: Catus Pole:

600 mm / 1000 mm / 2000 mm

Kleur – Couleur: Carbon grey / Mud brown / Sand

Rust effect / Matt white txt

Systeemvermogen – Puissance de système: Spot:

7W / 13W



Strip:

4,5W (300 mm) / 9W (600 mm)

Bundel – Faisceau: 7W:

Spot: 15º

Flood: 20º

Medium: 33º

Wide: 37º

Ellipse: 29º



13W:

Spot: 20º

Flood: 25º

Medium: 37º

Wide: 54º

Ellipse: 44º



Strip: 83º

Uitrusting – Equipement: LED
Kelvin graden – Degré Kelvin: 2700°K / 3000°K / 4000°K
Lumen: 7W:

Spot: 518 lm

Flood: 511 lm

Medium: 516 lm

Wide: 490 lm

Ellipse: 417 lm



13W:

Spot: 959 lm

Flood: 943,6 lm

Medium: 990,6 lm

Wide: 952,5 lm

Ellipse: 898,2 lm



Strip (300 mm): 107 lm

Strip (600 mm): 214 lm

RA-CRI: >85 (Only 3000°K) / >95
Afkoeling – Refroidissement: Passief – Passif
Voorschakelapp – Ballast: LED driver
Bescherming – Protection: IP20 / IP67 & IK08
Norm – Norme: CE EN60598-1
CIE fluxcode: Op aanvraag – Sur demande
Energetic Class: Energy Class A+
Optie – Option On-Off / DALI



Honeycomb / Snoot / Visor



Corrosion Resistant Coating for Hostile Environments



Coloured Rings:

Translucent / Orange Translucent / Green Translucent / Blue Translucent



Adjustable elliptical lens 14ºx60º



Mounting Systems:

Wall Mount / Tree Mount / Stake Mount



24V / 48V

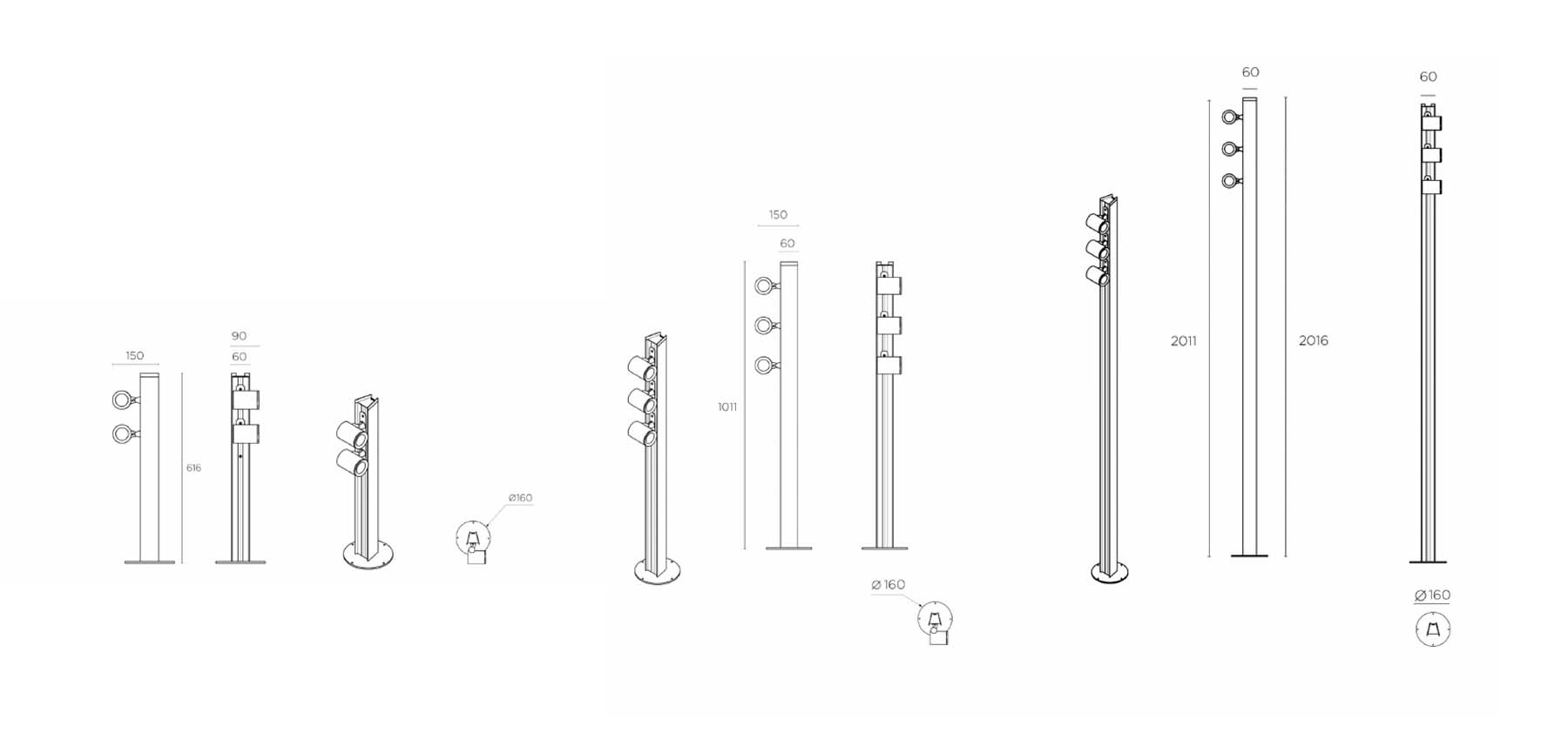

Technische tekening

Technische tekening

CACTUS Pole system + Wolf LED

CACTUS Pole system + Wolf LED CACTUS Pole system + Wolf LED

Technische Fiche

Merk – Marque: Exenia
Materiaal – Materiaux: Die-cast Aluminium
Type: Opbouw / Apparent
Afmetingen armatuur – Dimensions armature: Catus Pole:

600 mm / 1000 mm / 2000 mm

Kleur – Couleur: Carbon grey / Mud brown / Sand

Rust effect / Matt white txt

Systeemvermogen – Puissance de système: Spot:

7W / 13W



Strip:

4,5W (300 mm) / 9W (600 mm)

Bundel – Faisceau: 7W:

Spot: 15º

Flood: 20º

Medium: 33º

Wide: 37º

Ellipse: 29º



13W:

Spot: 20º

Flood: 25º

Medium: 37º

Wide: 54º

Ellipse: 44º



Strip: 83º

Uitrusting – Equipement: LED
Kelvin graden – Degré Kelvin: 2700°K / 3000°K / 4000°K
Lumen: 7W:

Spot: 518 lm

Flood: 511 lm

Medium: 516 lm

Wide: 490 lm

Ellipse: 417 lm



13W:

Spot: 959 lm

Flood: 943,6 lm

Medium: 990,6 lm

Wide: 952,5 lm

Ellipse: 898,2 lm



Strip (300 mm): 107 lm

Strip (600 mm): 214 lm

RA-CRI: >85 (Only 3000°K) / >95
Afkoeling – Refroidissement: Passief – Passif
Voorschakelapp – Ballast: LED driver
Bescherming – Protection: IP20 / IP67 & IK08
Norm – Norme: CE EN60598-1
CIE fluxcode: Op aanvraag – Sur demande
Energetic Class: Energy Class A+
Optie – Option On-Off / DALI



Honeycomb / Snoot / Visor



Corrosion Resistant Coating for Hostile Environments



Coloured Rings:

Translucent / Orange Translucent / Green Translucent / Blue Translucent



Adjustable elliptical lens 14ºx60º



Mounting Systems:

Wall Mount / Tree Mount / Stake Mount



24V / 48V

Technische tekening

Technische tekening
