| Merk – Marque: | Climar |
| Materiaal – Materiaux: | UV resistant polyestar powder coated aluminium body with anti-corrosion surface treatment
Plastic recessed housing
Cover rim made of AISI 316 stailess steel, silicone gasket and tempered safety glass |
| Type: | Inbouw Richtbaar 15º / Encastré Orientable 15º |
| Kleur – Couleur: | Fine brushed stainless steel |
| Diffuser – Diffuseur: | Clear Tempered Glass
PMMA Lens |
| Bundel – Faisceau: | 12º / 35º / 48º / 12ºx48º |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | 11W / 20W / 29W |
| Kelvin graden – Degré Kelvin: | 3000°K / 4000°K |
| Lumen: | 11W:
12º: 3000°K: 748 lm / 4000°K: 897 lm 35º: 3000°K: 710 lm / 4000°K: 852 lm 48º: 3000°K: 674 lm / 4000°K: 810 lm 12ºx48º: 3000°K: 705 lm / 4000°K: 846 lm
20W: 12º: 3000°K: 1346 lm / 4000°K: 1615 lm 35º: 3000°K: 1279 lm / 4000°K: 1534 lm 48º: 3000°K: 1215 lm / 4000°K: 1468 lm 12ºx48º: 3000°K: 1270 lm / 4000°K: 2286 lm
29W: 12º: 3000°K: 2019 lm / 4000°K: 2423 lm 35º: 3000°K: 1918 lm / 4000°K: 2301 lm 48º: 3000°K: 1820 lm / 4000°K: 2187 lm 12ºx48º: 3000°K: 1905 lm / 4000°K: 2286 lm |
| RA – CRI: | >80 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Voeding – Alimentation: | 230/50Hz 24 VDC |
| Bescherming – Protection: | IK10 / IP67 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Optie – Option | On-Off
Honeycomb Louvre – Glare control filter
2700ºK / 5000ºK / 6500ºK |
Lanin 220
Technische Fiche

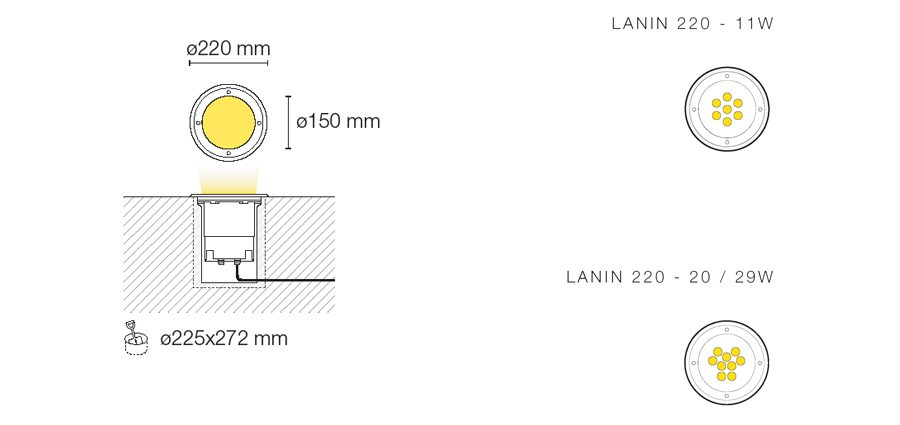

Technische tekening
