| Merk – Marque: | Castaldi |
| Materiaal – Materiaux: | Die-cast aluminium |
| Type: |
Projector – Projecteur Richtbaar – Orientable |
| Afmetingen armatuur – Dimensions armature: |
443x150x150mm |
| Kleur – Couleur: | Graphite Satin Finish / Aluminium Grey |
| Diffuser – Diffuseur: |
Temperad glass COB |
| Bundel – Faisceau: |
Zoom On Site / Narrow Beam / Spot Beam Medium Beam / Asymmetric |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | 62W |
| Kelvin graden – Degré Kelvin: | 3000ºK / 4000ºK |
| Lumen: |
Zoom On Site: 4000°K: 5920 lm / 3000°K: 5771 lm
Narrow Beam: 4000°K: 4640 lm / 3000°K: 4523 lm
Spot Beam: 4000°K: 5996 lm / 3000°K: 5844 lm
Medium Beam: 4000°K: 6985 lm / 3000°K: 6809 lm
Asymmetric: 4000°K: 7550 lm / 3000°K: 7359 lm |
| RA – CRI: | >80 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Voeding – Alimentation: | 220-240V & 50-60Hz |
| Bescherming – Protection: | IP66 / IK08 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: |
Op aanvraag – Sur demande |
| Optie – Option |
On-Off / DALI Zoom On Site only in DALI version |
Boxer Projector 3 LED
Technische Fiche

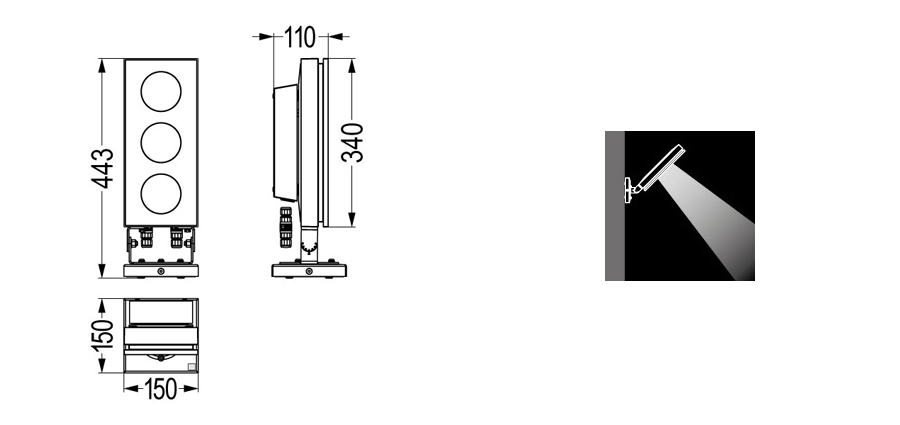

Technische tekening
